UPLC-MS/MS与化学发光微粒子免疫分析法测定甲氨蝶呤血药浓度的比较分析

doi:10.5246/jcps.2025.05.032

中国药学(英文版) ›› 2025, Vol. 34 ›› Issue (5): 423-431.DOI: 10.5246/jcps.2025.05.032

UPLC-MS/MS与化学发光微粒子免疫分析法测定甲氨蝶呤血药浓度的比较分析

时正媛¹^,²^,^*(), 李京峰¹^,², 杨春静¹^,², 续茜桥¹^,², 姜德春¹^,²

^1. 首都医科大学附属北京世纪坛医院药学部, 北京 100038
^2. 临床合理用药生物特征谱学评价北京市重点实验室, 北京 100038

收稿日期:2024-11-24 修回日期:2025-01-20 接受日期:2025-02-07 出版日期:2025-06-02 发布日期:2025-06-01
通讯作者: 时正媛

Comparative analysis of UPLC-MS/MS and chemiluminescence microparticle immunoassay for serum methotrexate measurement in pediatric intracranial tumor patients

Zhengyuan Shi¹^,²^,^*(), Jingfeng Li¹^,², Chunjing Yang¹^,², Xiqiao Xu¹^,², Dechun Jiang¹^,²

¹ Department of Pharmacy, Beijing Shijitan Hospital, Capital Medical University, Beijing 100038, China
² Beijing Key Laboratory of Bio-Characteristic Profling for Evaluation of Clinical Rational Drug Use, Beijing 100038, China

Received:2024-11-24 Revised:2025-01-20 Accepted:2025-02-07 Online:2025-06-02 Published:2025-06-01
Contact: Zhengyuan Shi
Supported by:
The Science and Technology Fund of Beijing Shijitan Hospital (Grant No. 2022-C06), the National Key Research and Development Program of China (Grant No. 2020YFF01014606).

摘要/Abstract

摘要：

本研究旨在建立一种基于超高效液相色谱-串联质谱(UPLC-MS/MS)的高准确度的检测方法, 用于测定血清中甲氨蝶呤(MTX)的浓度, 并将该方法与化学发光微粒子免疫分析法(CMIA)进行比较。收集接受大剂量MTX治疗的211例颅内肿瘤患儿血清样本, 分别用UPLC-MS/MS和CMIA法进行测定, 对测定结果进行相关性分析和一致性分析。结果表明, 两种方法测得的MTX血清浓度在低浓度区间内(0.04–1.5 μmol/L)有统计学差异, 而在高浓度区间内(1.5–400 μmol/L)无统计学差异, 在以上两个浓度区间, 两组之间均有较好的相关性(P < 0.05), 相关系数分别为0.9913和0.9893。Bland-Altman分析结果表明, 在0.04–1.5 μmol/L的浓度范围内(107例), 两种方法的偏差为0.018。研究表明, 两种方法测定的甲氨蝶呤血清浓度不能直接替代, 可通过方程式进行结果互算, 为临床个体化用药方案的制订提供参考。

关键词: 甲氨蝶呤, 治疗药物监测, 超高效液相色谱-串联质谱法, 化学发光微粒子免疫分析法

Abstract:

This study aimed to establish a highly accurate method for quantifying methotrexate (MTX) concentrations in serum using an ultra-high performance liquid chromatography-tandem mass spectrometry system (UPLC-MS/MS) and to compare its performance with the chemiluminescence microparticle immunoassay (CMIA). A total of 211 serum samples from pediatric patients with intracranial tumors undergoing high-dose MTX treatment were analyzed using both techniques. Correlation and agreement analyses were performed to assess the level of concordance between these methods. The results demonstrated a significant correlation (P < 0.05) between the two methods, with correlation coefficients of 0.9913 and 0.9893, respectively. However, a statistical difference was noted in MTX serum concentrations at lower levels (0.04–1.5 μmol/L), while no significant difference was observed at higher concentrations (1.5–400 μmol/L). Specifically, in the 0.04–1.5 μmol/L range (107 cases), Bland-Altman analysis indicated a bias of 0.018 between the two methods. Given the observed discrepancies, particularly at lower concentrations, it is advised that the UPLC-MS/MS method should not be used interchangeably with the CMIA assay for therapeutic drug monitoring in patients receiving high-dose MTX treatment.

Key words: Methotrexate, Therapeutic drug monitoring, UPLC-MS/MS, Chemiluminescence microparticle immunoassay

Supporting:

时正媛, 李京峰, 杨春静, 续茜桥, 姜德春. UPLC-MS/MS与化学发光微粒子免疫分析法测定甲氨蝶呤血药浓度的比较分析[J]. 中国药学(英文版), 2025, 34(5): 423-431.

Zhengyuan Shi, Jingfeng Li, Chunjing Yang, Xiqiao Xu, Dechun Jiang. Comparative analysis of UPLC-MS/MS and chemiluminescence microparticle immunoassay for serum methotrexate measurement in pediatric intracranial tumor patients[J]. Journal of Chinese Pharmaceutical Sciences, 2025, 34(5): 423-431.

图/表 4

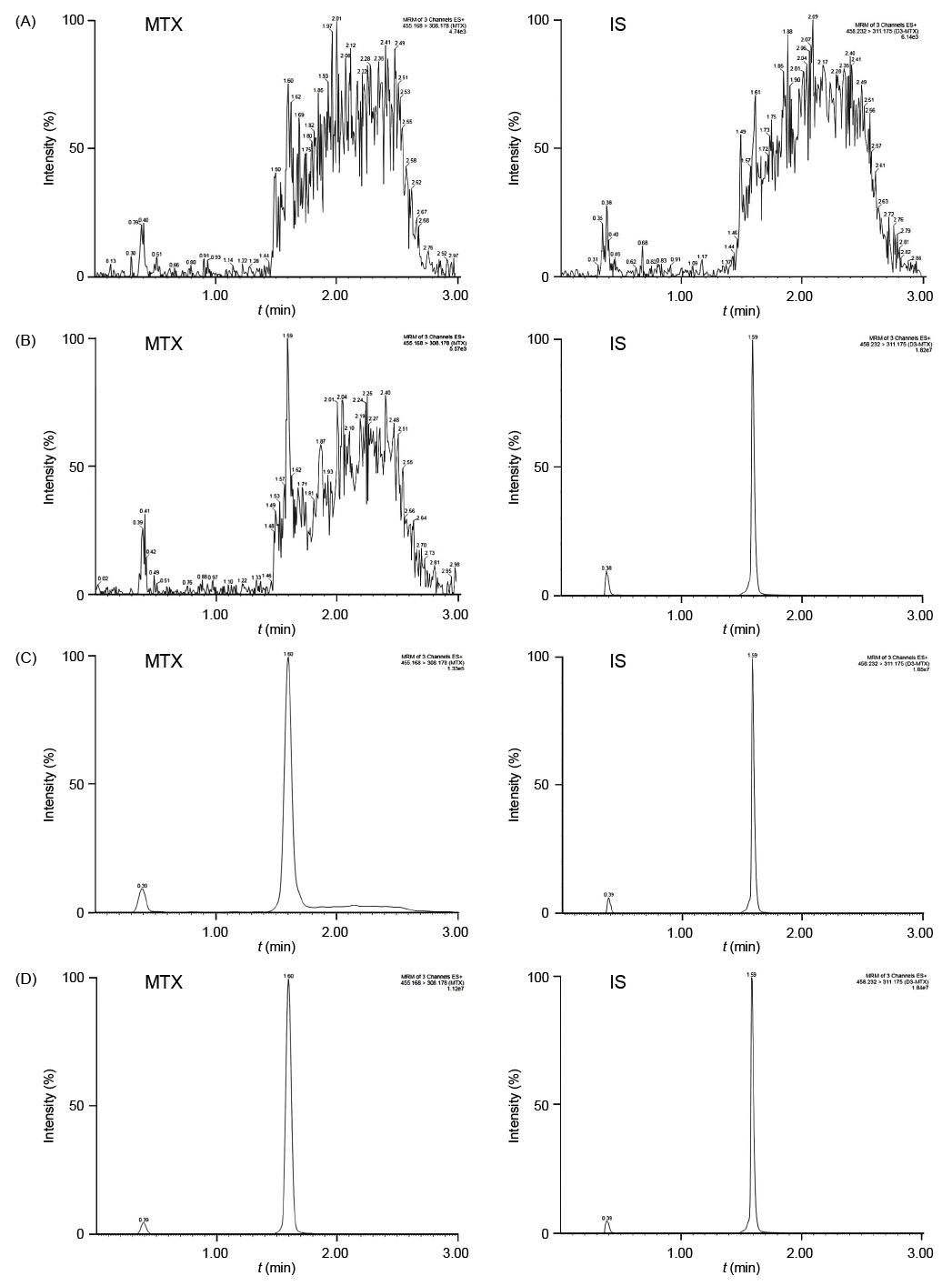

Figure 1. Typical chromatograms of MTX and MTX-D3 as IS determined by UPLC-MS/MS method (A. blank serum; B. blank serum spiked with IS; C. LLOQ; D. patient sample).

Table 1. Accuracy and precision of MTX in human serum determined by UPLC-MS / MS method (n = 5).

Table 2. Recovery and matrix effect of MTX in human serum determined by UPLC-MS/MS method (n = 5).

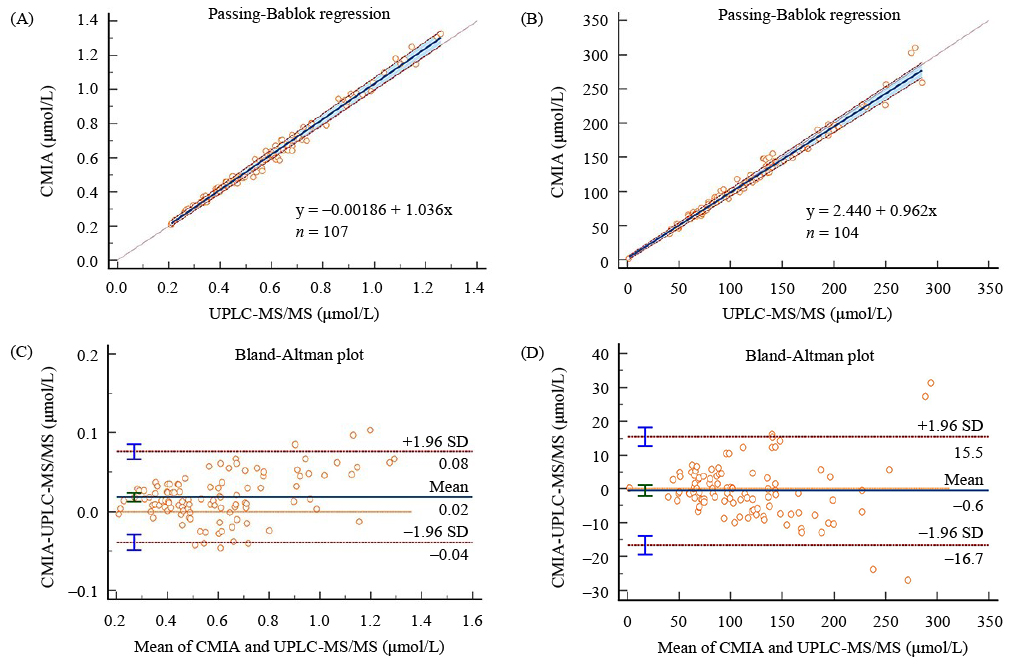

Figure 2. Passing-Bablok regression analysis and Bland-Altman plots of differences over mean values of paired MTX concentrations obtained by CMIA and UPLC-MS/MS, analyzers on 195 serum samples. Passing-Bablok regression analysis (A. 0.01–1.5 μmol/L; B. 1.5–400 μmol/L); and Bland-Altman plots (C. 0.01–1.5 μmol/L; D. 1.5–400 μmol/L).

参考文献 25

[1]	Sinha, A.K.; Anand, S.; Ortel, B.J.; Chang, Y.; Mai, Z.; Hasan, T.; Maytin, E.V. Methotrexate used in combination with aminolaevulinic acid for photodynamic killing of prostate cancer cells. Br. J. Cancer. 2006, 95, 485–495.
[2]	Jiang, R.Q.; Mei, S.H.; Zhao, Z.G. Leucovorin (folinic acid) rescue for high-dose methotrexate: a review. J. Clin. Pharm. Ther. 2022, 47, 1452–1460.
[3]	Jolivet, J.; Cowan, K.H.; Curt, G.A.; Clendeninn, N.J.; Chabner, B.A. The pharmacology and clinical use of methotrexate. N. Engl. J. Med. 1983, 309, 1094–1104.
[4]	Howard, S.C.; McCormick, J.; Pui, C.H.; Buddington, R.K.; Donald Harvey, R. Preventing and managing toxicities of high-dose methotrexate. Oncologist. 2016, 21, 1471–1482.
[5]	Csordas, K.; Hegyi, M.; Eipel, O.T.; Muller, J.; Erdelyi, D.J.; Kovacs, G.T. Comparison of pharmacokinetics and toxicity after high-dose methotrexate treatments in children with acute lymphoblastic leukemia. Anti Cancer Drugs. 2013, 24, 189–197.
[6]	Wang, A.; Cirrone, F.; De Los Reyes, F.A.; Papadopoulos, J.; Saint Fleur-Lominy, S.; Xiang, E. High-dose methotrexate dosing strategy in primary central nervous system lymphoma. Leuk. Lymphoma. 2022, 63, 1348–1355.
[7]	Abe, K.; Higurashi, T.; Takahashi, M.; Maeda-Minami, A.; Kawano, Y.; Miyazaki, S.; Mano, Y. Concomitant use of high-dose methotrexate and glycyrrhizin affects pharmacokinetics of methotrexate, resulting in hepatic toxicity. In Vivo. 2021, 35, 2163–2169.
[8]	Li, M.; Kong, X.Y.; Wang, S.M. Risk factors for delayed methotrexate elimination in pediatric patients with hematological malignancies: a retrospective analysis. J. Chin. Pharm. Sci. 2022, 31, 746–754.
[9]	Bouquié, R.; Grégoire, M.; Hernando, H.; Azoulay, C.; Dailly, E.; Monteil-Ganière, C.; Pineau, A.; Deslandes, G.; Jolliet, P. Evaluation of a methotrexate chemiluminescent microparticle immunoassay: comparison to fluorescence polarization immunoassay and liquid chromatography-tandem mass spectrometry. Am. J. Clin. Pathol. 2016, 146, 119–124.
[10]	Aumente, M.D.; López-Santamaría, J.; Donoso-Rengifo, M.C.; Reyes-Torres, I.; Montejano Hervás, P. Evaluation of the novel methotrexate architect chemiluminescent immunoassay: clinical impact on pharmacokinetic monitoring. Ther. Drug Monit. 2017, 39, 492–498.
[11]	Fang, S.P.; Lollo, C.P.; Derunes, C.; LaBarre, M.J. Development and validation of a liquid chromatography method for simultaneous determination of three process-related impurities: yeastolates, triton X-100 and methotrexate. J. Chromatogr. B. 2011, 879, 3612–3619.
[12]	Wu, D.; Wang, Y.X.; Sun, Y.; Ouyang, N.; Qian, J. A simple, rapid and reliable liquid chromatography-mass spectrometry method for determination of methotrexate in human plasma and its application to therapeutic drug monitoring. Biomed. Chromatogr. 2015, 29, 1197–1202.
[13]	Rodin, I.; Braun, A.; Stavrianidi, A.; Shpigun, O. A validated LC–MS/MS method for rapid determination of methotrexate in human saliva and its application to an excretion evaluation study. J. Chromatogr. B. 2013, 937, 1–6.
[14]	Rule, G.; Chapple, M.; Henion, J. A 384-well solid-phase extraction for LC/MS/MS determination of methotrexate and its 7-hydroxy metabolite in human urine and plasma. Anal. Chem. 2001, 73, 439–443.
[15]	Guo, P.; Wang, X.M.; Liu, L.S.; Belinsky, M.G.; Kruh, G.D.; Gallo, J.M. Determination of methotrexate and its major metabolite 7-hydroxymethotrexate in mouse plasma and brain tissue by liquid chromatography-tandem mass spectrometry. J. Pharm. Biomed. Anal. 2007, 43, 1789–1795.
[16]	McTaggart, M.P.; Keevil, B.G. A rapid LC-MS/MS assay for the measurement of serum methotrexate in patients who have received high doses for chemotherapy. Ann. Clin. Biochem. 2021, 58, 599–604.
[17]	Hu, Q.Y.; Hou, H. Appendix D: Guidance for industry: Bioanalytical method validation. Food and Drug Administration. 2018.
[18]	EMEA. Committee for Medicinal Products for human use. Guideline on bioanalytical method validation. European Medicines Agency. 2011.
[19]	Fotoohi, K.; Skärby, T.; Söderhäll, S.; Peterson, C.; Albertioni, F. Interference of 7-hydroxymethotrexate with the determination of methotrexate in plasma samples from children with acute lymphoblastic leukemia employing routine clinical assays. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2005, 817, 139–144.
[20]	Wilson, J.F.; Tsanaclis, L.M.; Barnett, K. External quality assessment of syva emit and Abbott TDx II assays for methotrexate in serum. Ther. Drug Monit. 1996, 18, 721–723.
[21]	Albertioni, F.; Rask, C.; Eksborg, S.; Poulsen, J.H.; Pettersson, B.; Beck, O.; Schroeder, H.; Peterson, C. Evaluation of clinical assays for measuring high-dose methotrexate in plasma. Clin. Chem. 1996, 42, 39–44.
[22]	Guerriero, E.; Simon, N.; Nelken, B.; Baldeyrou, B.; Djobo, B.; Vasseur, M.; Allorge, D.; Décaudin, B.; Odou, P. Unexpected overestimation of methotrexate plasma concentrations: analysis of a single center pediatric population. Ther. Drug Monit. 2014, 36, 499–504.
[23]	Kaneko, T.; Fujioka, T.; Suzuki, Y.; Sato, Y.; Itoh, H. Performance characteristics between TDx^®FLx and TBA^TM-25FR for the therapeutic drug monitoring of methotrexate. J. Pharm. Health Care Sci. 2016, 2, 7.
[24]	Aumente, M.D.; López-Santamaría, J.; Donoso-Rengifo, M.C.; Reyes-Torres, I.; Montejano Hervás, P. Evaluation of the novel methotrexate architect chemiluminescent immunoassay: clinical impact on pharmacokinetic monitoring. Ther. Drug Monit. 2017, 39, 492–498.
[25]	Descoeur, J.; Dupuy, A.M.; Bargnoux, A.S.; Cristol, J.P.; Mathieu, O. Comparison of four immunoassays to an HPLC method for the therapeutic drug monitoring of methotrexate: Influence of the hydroxylated metabolite levels and impact on clinical threshold. J. Oncol. Pharm. Pract. 2022, 28, 55–63.
